產品規格 |
單位 |

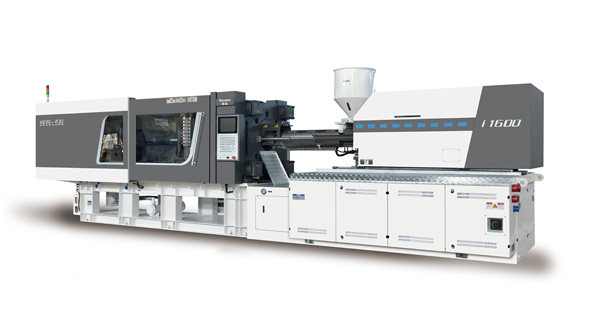

HXYD160 |
||||||||
|
合模單元Clamping Unit |
? |
|||||||||
|
合模力Clamping force |
kN |
1600 |
||||||||
|
移動模板行程Moving mould-plate stroke |
mm |
420 |
||||||||
|
最大模厚?Max.Mould height |
mm |
530 |
||||||||
|
最小模厚Min.Mould height |
mm |
150 |
||||||||
|
拉桿有效間距?Space between tie-bars |
mm |
520*470 |
||||||||
|
液壓頂出力Hydraulic ejector force |
kN |
68 |
||||||||
|
液壓頂出行程?Hydraulic ejector stroke |
mm |
130 |
||||||||
|
頂出點數Ejector number |
n |
5 |
||||||||
|
注射單元Injection Unit |
i350 |
I450 |
I650 |
|||||||
|
螺桿直徑Screw diameter |
mm |
32 |
36 |
40 |
36 |
40 |
45 |
40 |
45 |
50 |
|
螺桿長徑比Screw L/D ratio |
L/D |
23.6 |
21 |
21 |
23.3 |
21 |
21 |
22.5 |
20 |
20 |
|
理論注射容積Injection capacity in theory |
cm3 |
144 |
183 |
226 |
183 |
226 |
286 |
263 |
334 |
412 |
|
注射重量Injection weight（ps） |
g |
131 |
166 |
205 |
166 |
205 |
260 |
240 |
303 |
375 |
|
注射壓力Injection pressure |
MPa |
2531 |
2000 |
1620 |
2469 |
2000 |
1580 |
2531 |
2000 |
1620 |
|
注射速度Injection velocity |
mm/s |
350 |
350 |
350 |
||||||
|
塑化能力?Plasticizing capacity |
g/s |
16 |
22 |
30 |
20 |
30 |
42 |
30 |
42 |
50 |
|
螺桿轉速?Screw speed |
rpm |
400 |
400 |
400 |
||||||
|
其他Other |
? |
|||||||||
|
油泵壓力Pump pressure |
MPa |
17.5 |
||||||||
|
驅動功率?Motor/Driving power |
kW |
37(注）+23（熔）+18.5（油） |
37(注）+23（熔）+18.5（油） |
37(注）+23（熔）+18.5（油） |
||||||
|
加熱功率?Heating capacity |
kW |
8.2 |
10.5 |
13.55 |
||||||
|
外形尺寸?Machine dimension |
m |
5.2*1.49*1.61 |
5.90*1.49*1.72 |
5.61*1.49*1.82 |
||||||
|
機器重量?Machine weight |
t |
6.5 |
7.8 |
8.0 |
||||||
|
油箱容積?Oil tank capacity |
L |
190 |
||||||||
